BPR1S Plus is the latest remote control with a voice function specially designed for AOSPthe TV box.

As we all know, there are two ways to transmit the voice recognition function: one is Google ATV voice in Bluetooth mode, and the other is 2.4G private protocol voice.

The Google ATV Voice feature is only available for the ATV TV box, not for AOSP (Android Open Source Project) TV box.

Therefore, we use a 2.4G private protocol voice to make it able to recognize the voice in the AOSP TV box.

When the BPR1S Plus Remote Control is in Bluetooth mode, the voice function can only support certified ATV TV boxes. (PS: Not all ATV TV boxes are available)

When the BPR1S Plus Air Mouse Remote Control is linked via 2.4G wireless USB, the voice function is only supported for unauthenticated AOSP TV boxes.

Huamas Co., Ltd. is a company dedicated to the research and development of independent products, supporting products customization, wholesale, and drop shipping.

-BPR1S: ATV/AOSP Version

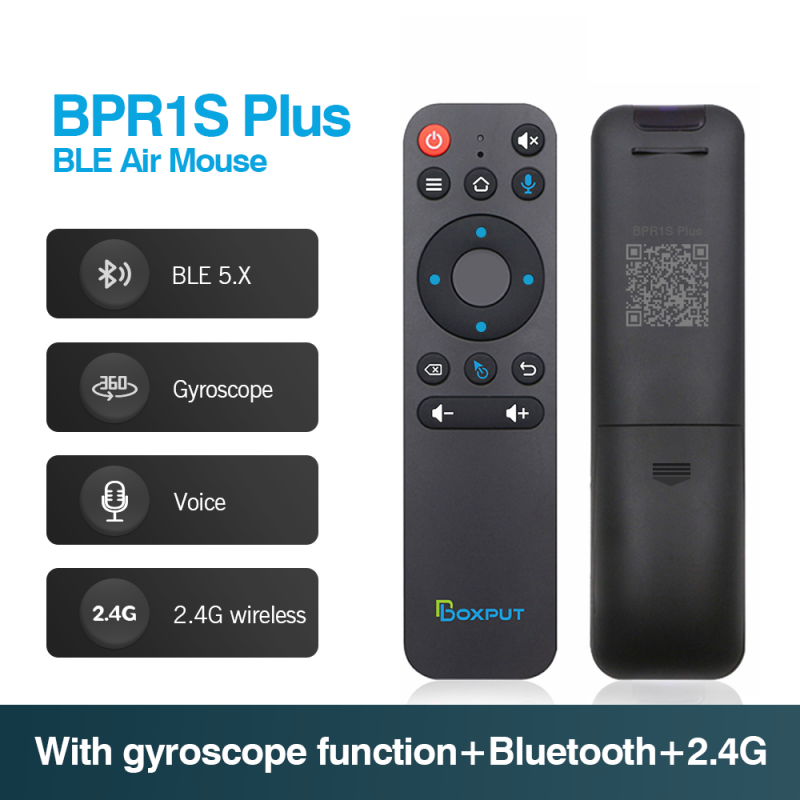

-BPR1S: BPR1S Plus: IR Learning + Bluetooth + Gyroscope + Voice + 2.4G Wireless

-The QR code of the instruction manual is displayed on the back of the BPR1S Remote Control, just scan the code.

Bluetooth Pairing
1. To pair another new device, press “OK” and “Back” at the same time till the light flashing.
2. Keep the remote control within 1 meter of the device for faster pairing.
3. Open Bluetooth searching, pair with “BOXPUT | BPR1S”.

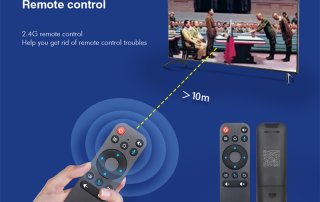

2.4G Pairing
1. Keep pressing the “OK” and “Back” at the same time till the light flashing.
2. Plug in the USB receiver and keep the remote near to the USB receiver within 5 cm for faster pairing.
3. The indicator light stops flashing to indicate successful pairing.

IR Learning (All buttons)
1. Press the button that needs to learn for 8 seconds till it’s flashing, then release (The indicator light on after flashing).
2. Align the IR, press the button that would be learned, it shows success when the indicator light flashing.
3. Repeat 1~2 to learn the other buttons.
4. Press “Delete” and “Back” at the same time till the light flashes to reset IR.

Highlights
1. The button would be in IR mode when disconnected from Bluetooth.
2. Only the “Power” button has infrared value when connected to Bluetooth.
3. Press “OK” + “volume +/-” shortly to control the speed of the mouse.
4. In IR mode, it supports full button learning, with no mouse function.
5. In Bluetooth mode, the voice function is applicable to some ATV devices, like TCL Smart TV, Shield TV Box, HAKO mini, Google TV, etc. But the voice function may be incompatible with the other devices.
6. In Bluetooth mode, the voice function is not compatible with all AOSP Android functions.
7. In 2.4G mode, the voice function supports AOSP Android and ATV devices.
8. In 2.4G mode, some ATV TVs cannot enter when logging into a Google account.
9. Do not use mouse mode in the Google account login interface, otherwise, the “ok” button is not compatible.
10. If no infrared learning, all buttons are 2.4G or Bluetooth mode function accordingly.
11. If the buttons have completed IR learning, only the power button will send the IR signal in priority in 2.4G or Bluetooth mode.

Feel free to tell us more about device compatibility issues and help us upgrade products.
